Profile Gage牙型比对模板
型号:
The TP Series of Tapered Thread Profile Gages are manufactured to tolerances of +.0002”, using EDM technology. These precision gages are ideal for quickly identifying each of the different tapered thread forms named in the API Std. 5B and Specification 7. Thread profile gages can also be used to perform a visual inspection of a thread form for detecting chipped inserts, stretched threads, wide first threads, or rolled over threads. Special profiles are available and quoted upon request.
GSG可以生产制造全系列的牙型比对模板,可以非标制作,欢迎前来咨询。

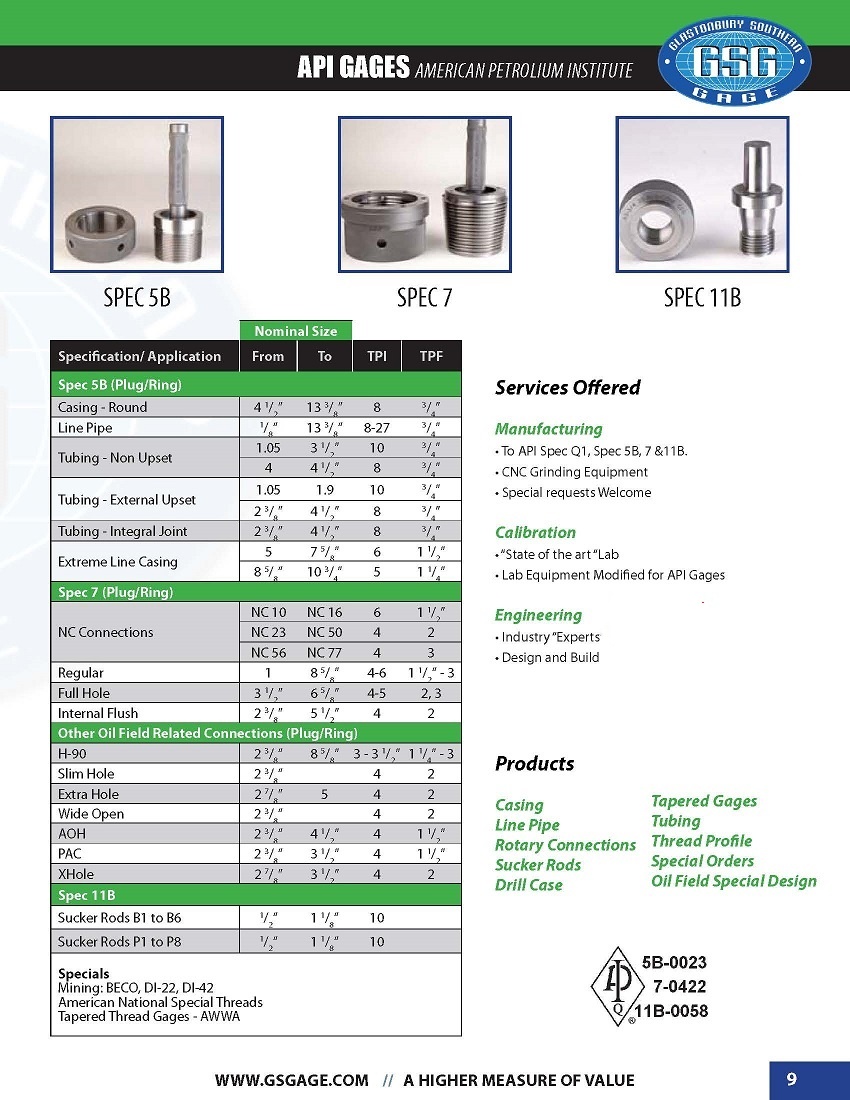

WILL CHECK THE FOLLOWING CONNECTIONS

THREAD FORM

-API REG: 2-3/8” thru 4-1/2”
-API FULL HOLE: 3-1/2”, 4-1/2”

V.040 5TPI 3TPF

-API REGULAR: 6-5/8”
-API FULL HOLE:5-1/2”, 6-5/8”

V.050 4TPI 2TPF

-API REGULAR: 5-1/2”, 7-5/8”, 8-5/8”

V.050 4TPI 3TPF

-API INTERNAL FLUSH:2-3/8” thru 5-1/2”
-API FULL HOLE:4”
-HUGHES EXTRA HOLE :2-7/8” thru 5”
-HUGHES SLIM HOLE: 2-3/8” thru 4-1/2”

V.065 4 TPI 2 TPF

-API NUMBERED CONNECTIONS #23 thru #50

V.038R 4TPI 2TPF

-API NUMBERED CONNECTIONS #56 thru #77

V.038R 4 TPI 3 TPF

-API NUMBERED CONNECTIONS #10, #12, #13, #16
-MACARONI TUBING 3/4”, 1-1/4”, 1-1/2”

V.055 6TPI 1-1/2TPF

-AMERICAN OPEN HOLE: 2-3/8” thru 4-1/2”

V.076 4TPI 1-1/2TPF

-HUGHES H-90: 3-1/2” thru 6-5/8”

H-90 3-1/2TPI 2TPF

-HUGHES H-90: 7” thru 8-5/8”

H-90 3-1/2TPI 3TPF

-HUGHES SLIM LINE :2-3/8” thru 3-1/2”

H-90 3 TPI 1-1/4TPF

-PAC CONNECTIONS: 2-3/8” thru 3-1/2”

V.076 4TPI 1-1/2TPF

-HUGHES EXTERNAL FLUSH 2-3/8”, 2-7/8”

6TPI 2TPF

-1-1/4” REGULAR

7TPI 2TPF

-1-13/16” WILSON FLUSH JOINT

7TPI 2TPF

-2-3/8” WILSON FLUSH JOINT

6TPI 2TPF

-ALL API 8RF CSG TBG DRILL PIPE

8RD FORM 3/4TPF

-ALL API STANDARD TUBING
-10RF THREAD

10RD FORM 3/4TPF

-IMPROVED BUTTRESS

8TPI 3/4TPF

-8V THREAD API LINE PIPE 2-1/2” thru 20”
-ALSO FOR AMERICAN STANDARD NPT: thru 20”

8V 3/4TPF

-THREAD API LINE PIPE: 1” thru 2”
-ALSO FOR AMERICAN STANDARD NPT

11-1/2TPI 3/4TPF

-API BUTTRESS CASING: 4-1/2” thru 13-3/8” INTERNAL

5TPI BUTTRESS 3/4TPF

-API BUTTRESS CASING: 4-1/2” thru 13-3/8” EXTERNAL

5TPI BUTTRESS 3/4TPF

-API BUTTRESS CASING: 16” AND LARGER INTERNAL

5TPI BUTTRESS 1TPF

-API BUTTRESS CASING: 16” AND LARGER EXTERNAL

5TPI BUTTRESS 1TPF

-EXTREME LINE CASING: 5” thru 7-5/8” INTERNAL

6TPI 1-1/2TPF

-EXTREME LINE CASING: 5” thru 7-5/8” EXTERNAL

6TPI 1-1/2TPF

-EXTREME LINE CASING: 8-5/8” thru 10-3/4” INTERNAL

5TPI 1-1/4TPF

-EXTREME LINE CASING: 8-5/8” thru 10-3/4” EXTERNAL

5TPI 1-1/4TPF

-BECO

2TPI 3TPF

-DI-22 CONNECTIONS: 10-1/2”

1-5/8TPI 1-1/2TPF

-DI-22 CONNECTIONS: 4-3/4” thru 9-1/4”

2TPI 1-1/2TPF

-DI-42 CONNECTIONS: 9-3/4”, 10-1/8”

2TPI 1TPF

-PROFILE GAGE

V.038R 4TPI 1/2TPF

-PROFILE GAGE

V.038R 4TPI 3/4TPF

-PROFILE GAGE

V.038R 4TPI 1TPF

-PROFILE GAGE

V.038R 4TPI 1-1/4TPF

-PROFILE GAGE

V.038R 4TPI 1-1/2TPF
