NPT Taper Plug and Ring Gauges
Gauges for testing threads to American National Standard ANSI/ASME B.1.20.1 - 1983.
This standard covers dimensions and gauging of pipe threads for general purpose applications.
The main types of threads designated are NPT, NPSC and NPSM.
The significance of each letter is as follows:
N = National (American) Standard
P = Pipe
T = Taper
C = Coupling
S = Straight
M = Mechanical
NPT Threads
Threaded fittings made to this standard consist of an external taper and an internal taper to form a joint having general purpose applications. These threads are intended to be made up wrench-tight, with a sealant whenever a pressure-tight joint is required.
The taper of the thread is 1:16 on diameter, normal to the axis. The pipe fittings range in size from 1/16 inch to 24 inch.
Provision is made for two types of gauge.
Master gauges: used to check working gauges.
Working gauges: used to check product threads during and after manufacture.

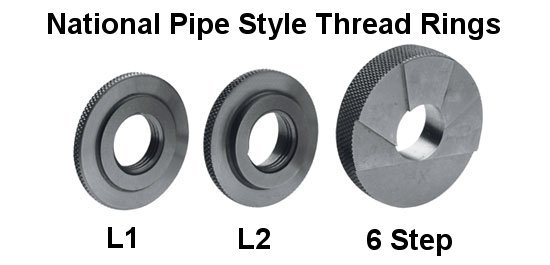

A set of master gauges
consists of a taper plug with a gauging notch located at L1 distance from the small end. The ring gauge has an overall length equal to the L1 dimension. This ring is fitted to its mating plug seating flush at the gauging notch. It should be understood that only a specifically matched set of masters (L1 plug and L1 ring) can be expected to assemble together within a stand-off tolerance of +/-0.002 inch as specified.
A set of working gauges
苏州斯托茨机电设备有限公司是一家专业从事测量设备、工装治具销售的企业，销售美国GSG螺纹量规、美国GSG光面量规、美国GSG石油螺纹规。同时销售HEMCO GAGE螺纹规、PMC石油螺纹量规、Gagemaker石油螺纹单项参数检测规、美国Rex Gauge邵氏硬度计、美国Flexbar 16130印模胶泥、法国Plastiform M70/M60/M90打样膏、德国JBO螺纹规、德国马尔粗糙度仪、日本三丰Mitutoyo数显卡尺、INSIZE英士数显深度尺、国产PD-6001内螺纹中径测量仪、PD-6000/PD-8001/PD-8002单项参数测量仪、GALGAGE焊接量规、Threadmaster螺纹规、Allen gauge单项仪、Meyer梅尔针规套装、Western Gage气动量仪、Marposs气动量仪E4N电子柱、Pennoyer-Dodge螺纹规、Barcor Inc倒角规、Sun-tec硬度计、Trimos测长机、影像仪、King硬度计、Cameron ball Gage密封槽球规、Asker橡胶硬度计、威尔逊硬度块、David Ellis硬度块、King硬度块、国产钻石硬度块等。更多产品 比如：CWT® GFM™, Gas Flow Monitor 气体流量计、Mueller
Gage、Universal Punch跳动量仪、国产跳动量仪、期待您的咨询。
consists of a taper plug gauge having a basic step at L1 distance from the small end, and a taper ring having an overall length equal to the L1 dimension. Plug and ring gauges can be supplied with limit steps to indicate the minimum and maximum diametral condition of the product. These gauges are known as MIN/MAX. The basic steps can be included or omitted as requested.
The L1 dimension is the axial distance from the small end of the pipe to the plane of handtight engagement.
These are parallel internal threads only in pipe couplings, and have the same thread form as the NPT thread. They are used to form pressure tight joints when assembled with NPT external threads, and made up wrench-tight with a sealant.NPSC Threads
The threads range in size from 1/8 inch to 4 inch.
Go/No Go parallel plug gauges can be supplied to test the diametral limits of these threads, although the standard states that NPT taper plug gauges should be used to test the internal product thread where the mating external threads are tapered and a pressure tight joint is required.
NPSM Threads
These are parallel threads, internal and external. The basic thread details correspond with NPT threads at the plane of handtight engagement.
Free fitting mechanical joints are used for special applications where there are no internal pressures. NPSM threads range in size from 1.8 inch to 6 inch.
- Notation
- H = 0.866025p = height of 60deg. sharp V thread
- h = 0.800000p = height of thread on product
- p = 1/n = pitch (measured parallel to axis)
- n = number of threads per inch
- a = 30deg. = thread flank angle
- ß = 1deg. 47 min. = thread taper angle for 1/16 taper
- fc = depth of truncation at crest
- fr = depth of truncation at root
- Fc = width of flat at crest
- Fr = width of flat at root
