GSG进口光面环规
GSG进口光面环规
进口高精度光面环规
公差:0.25um/0.5um
货期:6-8周
品牌:美国GSG

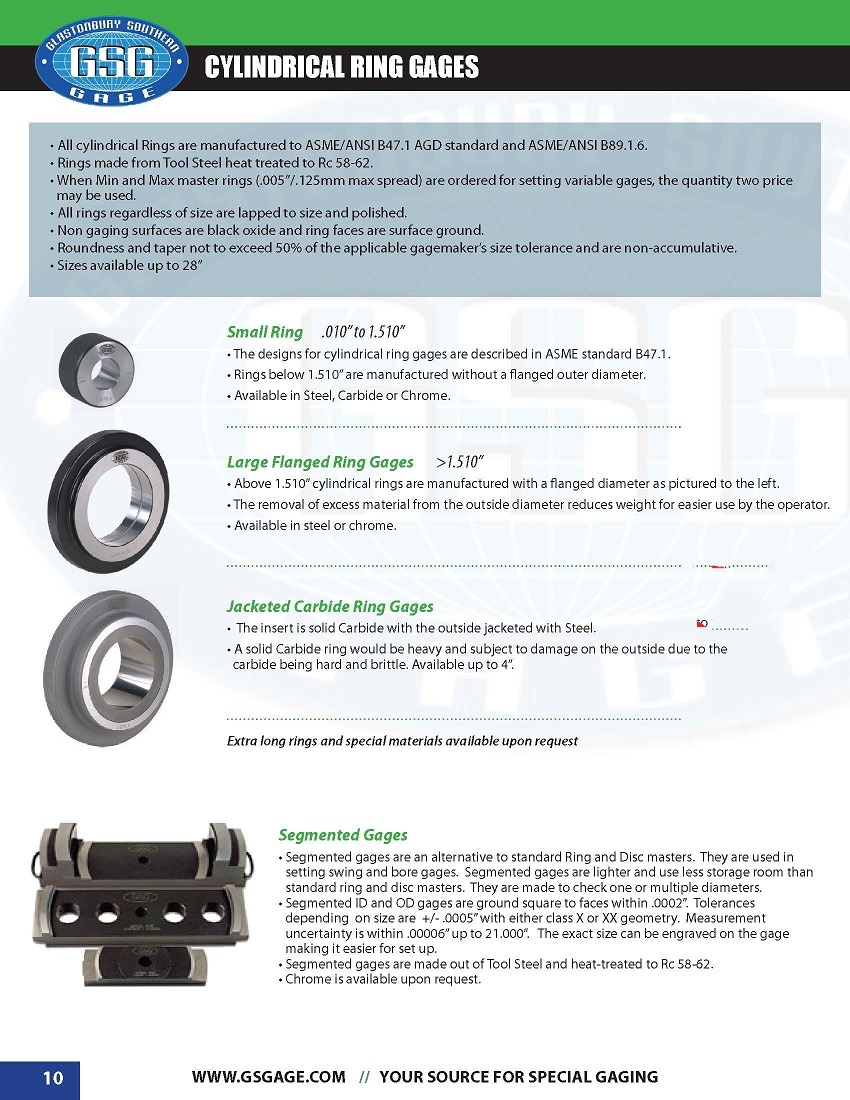

• All cylindrical Rings are manufactured to ASME/ANSI B47.1 AGD standard and ASME/ANSI B89.1.6.
• Rings made from Tool Steel heat treated to Rc 58-62.
• When Min and Max master rings (.005”/.125mm max spread) are ordered for setting variable gages, the quantity two price
may be used.
• All rings regardless of size are lapped to size and polished.
• Non gaging surfaces are black oxide and ring faces are surface ground.
• Roundness and taper not to exceed 50% of the applicable gagemaker’s size tolerance and are non-accumulative.
• Sizes available up to 28”

  苏州斯文克精密测量设备有限公司专业代理销售GSG进口高精度光面环规,期待合作,谢谢!
