alphaDUR II硬度计
德国alphaDUR II硬度计
苏州斯托茨机电设备有限公司
SONATEST 超声波检测仪器
SONATEST 超声波检测中国代理商
SONATEST 超声波检测测试仪器

  • Fast and easy hardness testing
  • Clear user interface with function keys
  • Measuring method according to DIN 50159 and ASTM A1038
  • Robust metal casing
  • Individual material calibrations
  • Extensive storage and statistical functions
  • Applicable for automated measurements



The alphaDUR II has proved its worth as a reliable and versatile hardness tester since many years. It can be employed from simple manual measurements to fully automated production testing.
The operation of the alphaDUR II is very easy because all information is shown on the large display. Hardness scale and material can quickly be changed by context-sensitive function keys.
Due to the UCI measuring method measurements can be done fast and accurate. The measured value is displayed directly after the test load has been applied. A test load between 0.3 (HV 0.3) and 10 kg (HV10) can be chosen depending on the application and the sample surface.


技术参数:

Measuring methodUCI (Ultrasonic Contact Impedance) according to DIN 50159 and ASTM A 1038-05
Test load3, 10, 20, 30, 49 or 98 N, depending on the UCI probe (HV0.3 - HV10)
Testing Materials:Preferably metals, material calibrations can be saved in the device. Measurements on glass, ceramic and plastic are possible if comparison measurements for calibration are done. Minimum thickness for steel app. 5mm (depending on the sample geometry)
Hardness scaleHRC, HV, HB, HRB and tensile strength
Uncertainty of measurement<2% to the value of the hardness test block
DisplayColour LCD 320 x 240 pixels
InterfaceUSB-Host, USB-Device, RS232
Data memory500,000 data records with date, time and GOOD/BAD rating
Data transfer:Direct protocol printout with mini thermal printer
PC-Software
Data transfer on USB flash device
StatisticsAverage value, minimum, maximum, standard deviation
BatteryBuilt-in NiMH battery, battery life approx. 7 h, rechargeable by power supply / battery charger 100 - 240 V AC
LanguageMenu: English, German, Russian
Manual: English, German, French, Italian, Russian
Dimensions198 x 160 x 78 mm
WeightDevice 1400 g, Probe 190 g
Minimum sample thickness


Approx. 5 mm (depends on the dimension and the shape of the sample)

 测量范围:

1、可测量的工件部位包括法兰盘边缘和齿轮根部;

2、冲压件,工模、薄板;

3、表面硬化的齿和齿轮的测量;

4、锥度部有硬度测量;

5、轴和薄壁管道、容器的测量;

6、车轮、涡轮转子的硬度测量;

7、钻头的刀口的硬度测量;

8、焊接部位;


性能特点:

 多功能硬度测量;

■  自动测量;

■  大数据存储;

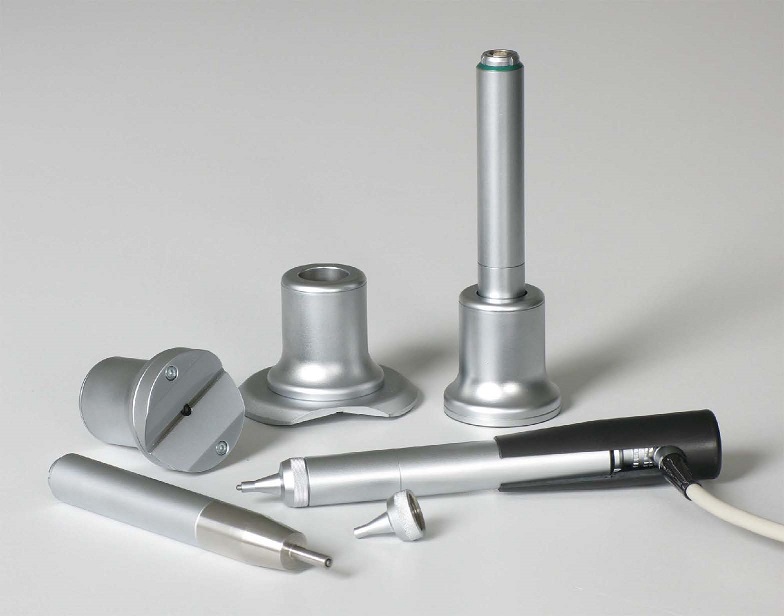

■  可用配件范围广;

■  预定义的材料校准(Esk?nnen自己的校准存储);

■  高精度测量;

■  大型背光LCD显示屏;

■  简单明了的操作菜单导航;

■  根据DIN50150转换的维氏(HV),洛氏(HRC),布氏(HB)或抗拉强度硬度值;

■  alphaDUR II提供的结果以高精度对可与传统的方法,例如维氏和洛氏被测试的所有材料。

■  简单明了的操作菜单导航是由大型背光图形显示支持。快速electonic评价立即返回硬度在HV HRC HB或价值。测试的可靠性保证每秒500次测量。

■  alphaDUR II,因此不仅适合移动使用,同时也为生产和输入控制硬度测试。

■  alphaDUR II可以很容易地设置为任何材料,并存储在材料名称校准。在该装置记录的测量数据永久使用日期,时间,材料和审查存储。要评估不同的统计功能可用。

■  试验负荷可以适于该应用程序。不需要校准的变化。与小探头测量即使在难以到达的区域,并在没有修正输入任意位置曲面。

■  记录一个微型打印机可连接,或者与我们的软件的帮助下alphasoft II的数据传送到PC。
